Automatic 7Kw Power 3-Phase 380V/50Hz Stator Lacing Machine with 1050kg Weight for 100-200mm ID Stators
Resumen del producto
Single Side 100-200mm ID Stator Lacing Machine Product Description Single Side Lacing Machine 100-200mm Stator ID ISO/SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and similar ...
Atributos personalizados del producto
Resaltar:
7Kw Power Stator Lacing Machine
,3-Phase 380V/50Hz Stator Lacing Machine
,1050kg Weight Stator Lacing Machine
Propiedades básicas
Lugar de origen:
PORCELANA
Nombre de la marca:
SMT
Certificación:
ISO/SGS Audit
Número de modelo:
SMT-DW350A
Propiedades comerciales
Cantidad de orden mínima:
1 set
Precio:
Negociable
Detalles de empaquetado:
Caja de la madera contrachapada con el lacre
Tiempo de entrega:
8-10 semanas
Condiciones de pago:
T/T, L/C
Capacidad de la fuente:
1 piezas 7-11 semanas
Descripción del producto

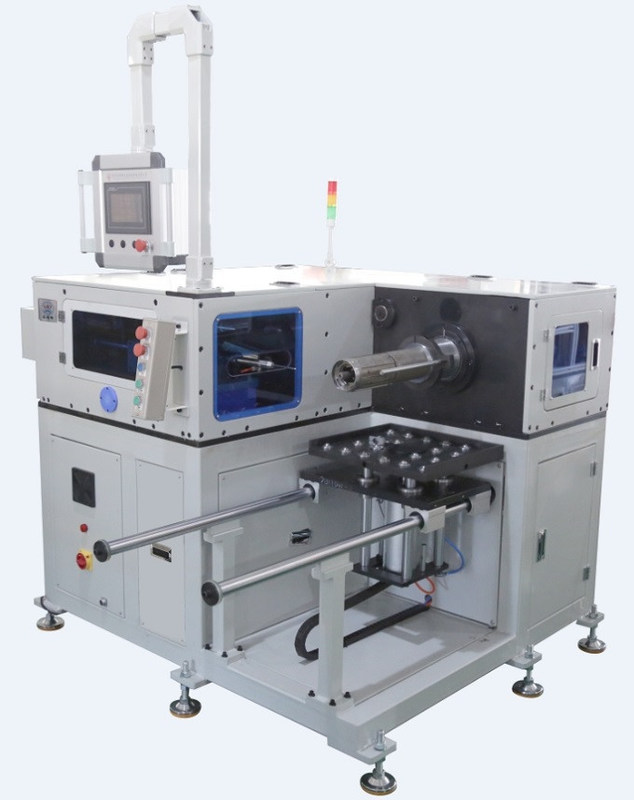

Single Side 100-200mm ID Stator Lacing Machine
Product Description
Single Side Lacing Machine 100-200mm Stator ID ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and similar applications.
For stator winding inserting machine inquiries, please provide detailed drawings including:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
Main Technical Features
Single needle automated lacing with servo motor control for needle transposition, stator indexing, and vertical needle movement. Features horizontal movable fixture for efficient stator loading/unloading.
| Model | SMT-DW350A |
|---|---|
| Core length | 80~260mm |
| Stator I.D | Φ100-200mm |
| Stator O.D | Φ170-260mm |
| Stack Height Range | 90-220mm |
| Coil End Height | 60-80mm |
| Oil Cylinder Displacement | 20L |
| Air Pressure | 0.5～1MPa |
| Power | 7Kw |
| Power supply | 3-Phase 380V/50Hz |
| Weight | 1050kg |
| Dimension | (L)1500×(W)1350×(H)1500mm |
Applications
Designed for new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise covers complete motor production technology including stator/rotor core assembly, slot insulation, winding, inserting, fusing, and resin impregnation.
Our Service
We prioritize product quality and service excellence to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are committed to being your reliable partner for long-term business relationships.
OEM/ODM Capabilities
- Innovative technical team providing customized solutions
- Specialized after-sale service with door-to-door support
- Extensive domestic and international service network
- 24/7 customer support through multiple communication channels
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design and production. With 150 employees including 30+ engineers, 20,000m² facility, and ISO9001:2000 certification, we provide complete production lines for various motor types from coil winding to final stator forming.
