Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes
Resumen del producto
Automatic Servo Type Stator Coil Single Lacing Machine Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190 The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system ...
Atributos personalizados del producto
Nombre:
La bobina del estator del motor de los lados del doble servo automático da vueltas a la máquina SMT
Modelo:
SMT-BZ190
Identificación del estator.:
Φ110~ Φ210mm
Estator O.D.:
≤Φ300mm
Altura de pila:
≤50mm
Fuente de alimentación:
380V/50/60Hz 3.5Kw
Número de ranura:
8~48 ranuras
Paquete:
Caja de madera de 1 capa.
Resaltar:
Automatic Servo Control Stator Lacing Machine
,Double Sides Lacing Stator Lacing Machine
,Programmable Lacing Modes Stator Lacing Machine
Propiedades básicas
Lugar de origen:
PORCELANA
Nombre de la marca:
SMT
Certificación:
ISO / SGS Audit
Número de modelo:
SMT-BZ190
Propiedades comerciales
Cantidad de orden mínima:
1 set
Precio:
Negociable
Detalles de empaquetado:
Embalaje de caja de madera
Tiempo de entrega:
46 - 68 días
Condiciones de pago:
T/T, L/C
Capacidad de la fuente:
1 unidad / 46 - 68 días
Descripción del producto
Automatic Servo Type Stator Coil Single Lacing Machine
Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190

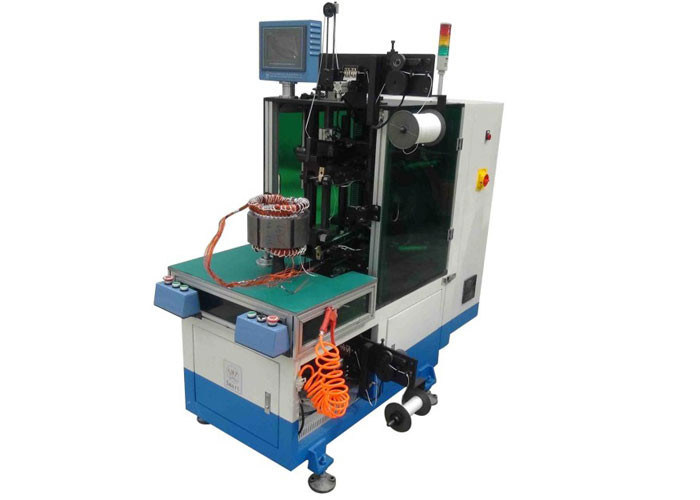

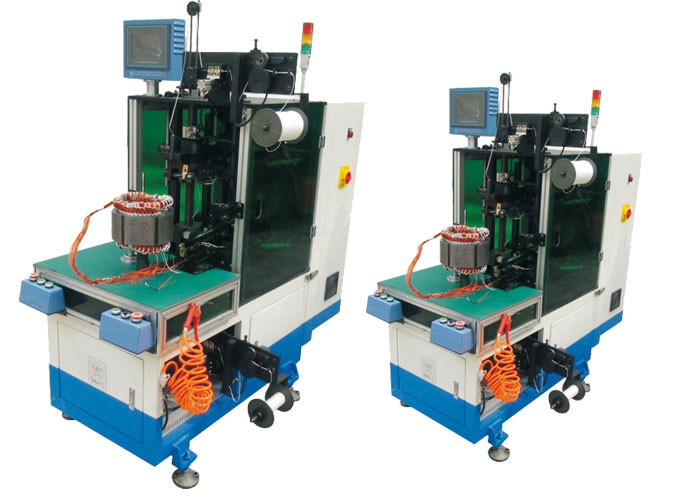

The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
Technical Specifications
| Model | BZ190 |
|---|---|
| Stack height | 60-180mm |
| Stator I.D | 110-210mm |
| Stator O.D | ≤ 300mm |
| Height of Overhang | ≤50mm |
| Lacing mode | Slot by slot / interval slot/Fancy lacing |
| Lacing speed | 0.8s/s |
| Power supply | 380v/50/60Hz 3.5kw |
| Machine weight | About 900kg |
| Machine dimension (LxWxH) | 1500x 650x 1800mm |
Key Advantages
- Servo driven system with CNC control and HIM programming
- Servo-controlled indexing for multiple lacing modes (slot, interval, fancy)
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper/lower coil lacing
- Automatic thread feeding and cutting (no knots required)
- Quick-change tooling for stator stack lengths of 50-130mm
- Adjustable lacing tension
- High production capacity (≤1s/slot)
- Minimal copper wire/enamel damage
- High qualification rates (≥98.5% primary, ≥99.5% after rework)
- Safety grating protection system
- Two-hand start operation for operator safety
Machine Characteristics
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Programmable lacing methods (slot-by-slot, interval, fancy)
- Optimized for large stators with high winding over-hang
- Movable tooling for fast loading/unloading and reduced labor
OEM/ODM Capabilities
We specialize in motor manufacturing equipment including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. Incorporating advanced international technology, we enhance factory automation with stable quality and comprehensive customer service. Our professional, efficient approach meets diverse customer requirements for motor production solutions.
Production Line Services
SMT provides comprehensive technical consulting and turn-key project services for AC, DC, and BLDC motor manufacturing. Our services include cost evaluation, manufacturing know-how, staff training, and complete production solutions.
