Submersible Pump Motor Stator Coil Winding Inserting Machine 3.5Kw
-
Resaltar
Submersible pump stator winding machine
,3.5Kw winding inserting machine
,Motor coil winding insertion tool
-
NombreMáquina de inserción de bobinas y bobinado de estator de motor de bomba
-
ModeloSMT-QX600
-
Identificación del estator.110-210m m
-
Estator O.D.≤260mm
-
Dimensión(Largo)2650×(Ancho)820×(Alto)1100mm
-
Peso900 kg
-
Longitud del núcleo≤250mm
-
Gama del número de ranura24-48 ranuras
-
ColorPantalones
-
OEMDE ACUERDO
-
Lugar de origenPorcelana
-
Nombre de la marcaSMT
-
CertificaciónISO / SGS Audit
-
Número de modeloSMT-QX600
-
Cantidad de orden mínima1 Uds.
-
PrecioNegociable
-
Detalles de empaquetadoCaja de la madera contrachapada con el lacre.
-
Tiempo de entrega8 - 14 semanas
-
Condiciones de pagoT/T, L/C
-
Capacidad de la fuente1 unidad / 7 - 13 semanas

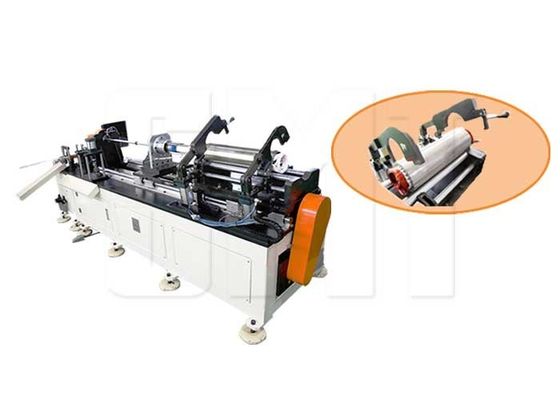

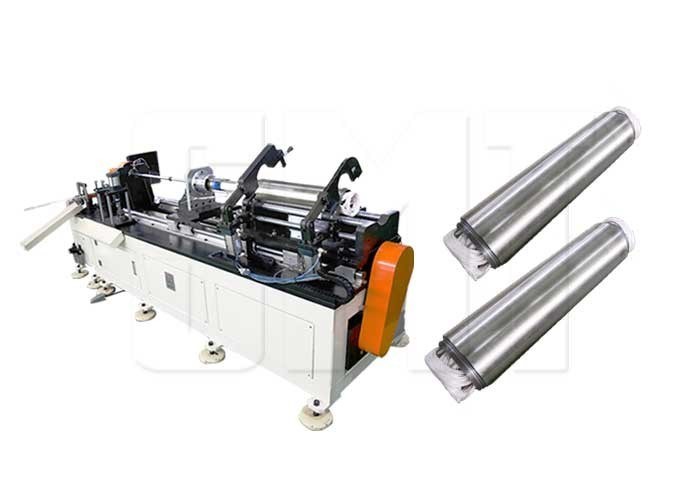

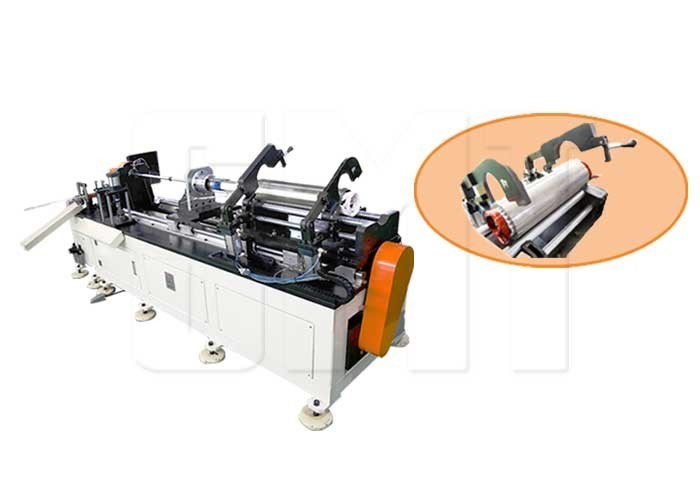

Submersible Pump Motor Stator Coil Winding Inserting Machine 3.5Kw
This horizontal type semi-automatic winding inserting machine features Mitsubishi AC servo motor and pneumatic element system drive. Controlled by PLC and equipped with X and Y spindle auto feeding device, it automatically inserts coil and wedge into stator slots simultaneously.
| Parameter | Value |
|---|---|
| Stator Stack Length | 300-600mm |
| Stator Outer Diameter | Max 300mm |
| Stator Inner Diameter | 50-150mm |
| Wire Diameter | 0.18-1.2mm |
| Voltage | 380V/50/60Hz |
| Power | 3.5Kw |
| Weight | Approx. 1200kg |
| Dimensions | L2100×W2000×H1600mm |
Designed for deep water pump motors and various types of overlength motor stators.
- Stator lamination drawing
- Stator stack drawing
- Winding drawing
- Winding distribution drawing
- Wedge drawing
- Other technical requirements
- Wide application range with easy operation
- Overseas Service Center support
- PLC-controlled with touch screen parameter setting
- Compatible with stators of various models and dimensions
- Simple tooling change process
- Customization available per customer requirements
- Global distribution network including USA, Europe, Middle East, and South America
The coil insertion process is critical in stator manufacturing. Our machine features high-quality, durable insertion tools and performs gang control of inserting main shaft, wedge paper feeding shaft, and wedge magazine indexing shaft through PLC control system. It completes enamelled wire insertion, slot wedge cutting/moulding, and wedge insertion in one operation, offering even wire push torque, stable wedge moulding, and high production efficiency.
- Innovative technical team provides complete customized solutions
- Specialized after-sale service with door-to-door support
- Domestic and international service network
- 24/7 customer service availability
We provide comprehensive motor manufacturing services including AC/DC/BLDC motor technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training.
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, 20,000m² facility, and advanced production equipment, we design complete stator production lines for various motor types. ISO9001:2000 certified since 2012.
