3 phase stator winding machine
,220V stator winding machine
,7Kw stator winding machine
-
NombreCA/DC 3 fases/1 máquina de la asamblea de base del estator de la fase para la bobina de bobina de es
-
ColorBlanco
-
Velocidad del alambre≤3200r/min
-
Aviador200 mm
-
Número de la transferencia2-6pcs
-
Fuente de alimentación220v/50/60Hz 7Kw
-
Peso750 kg
-
Dimensión(L) 1800X (W) 1100X2200m m
-
Cabeza de enrrollamiento1 a 8
-
Presión de aire≥0.4Mpa
-
Distancia de la transferencia≥170mm
-
Lugar de origenChina.
-
Nombre de la marcaSMT
-
CertificaciónISO9001/SGS Audit
-
Número de modeloSMT-R160
-
Cantidad de orden mínima1 set
-
PrecioNegociable
-
Detalles de empaquetadoCaja de la madera contrachapada con el bolso de aislamiento
-
Tiempo de entrega32 - 51 días
-
Condiciones de pagoT/T, L/C
-
Capacidad de la fuente1pcs/32 - 51 días

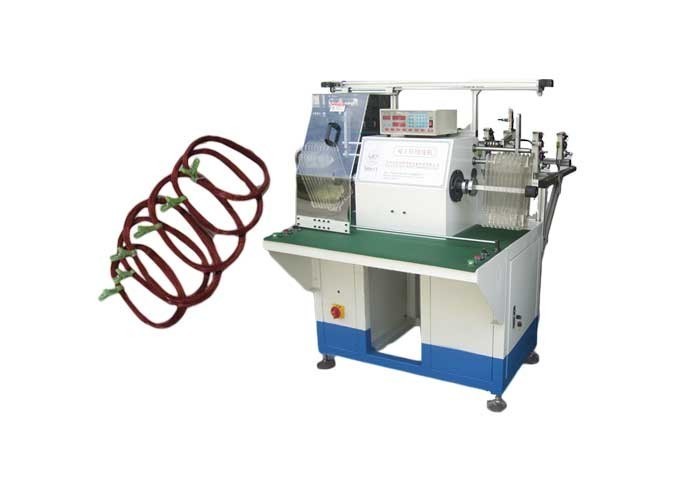

AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw

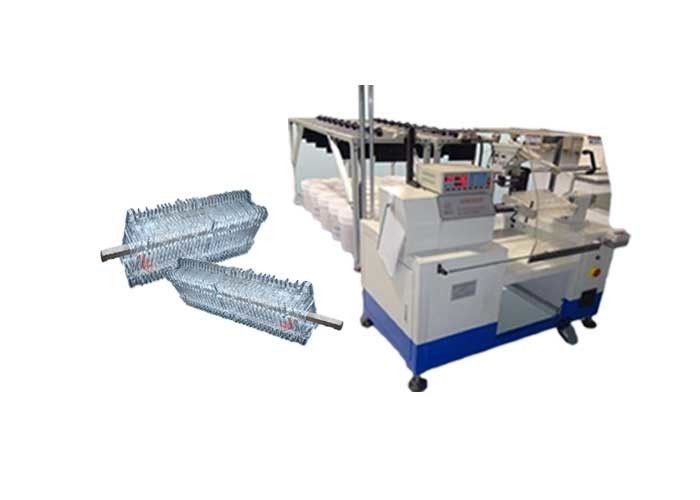

AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding
Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller with programmable functions for arraying direction, winding start point, slow starting/ending, side stops, auto width adjustment, and auto reset.
Technical Specifications
| Parameter | Value |
|---|---|
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
Key Features
- Specialized design for multiple wire parallel coil winding
- Advanced controller with programmable winding parameters
- Significant labor and cost savings
- Precision winding capabilities for alternators, servo motors, and three phase motors
Competitive Advantages
- Versatile application across different motor types
- User-friendly operation and easy tooling changes
- Customizable solutions available
- Global support with overseas service centers
- Proven track record in international markets including USA, Europe, and South America
